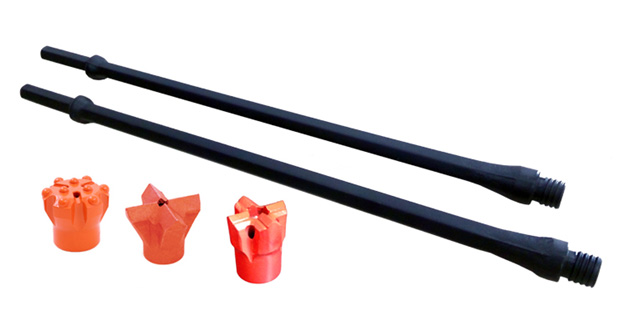

Tige et foret à filetage en H
L'acier à filetage H est l'acier et les mèches les plus courants pour les clients utilisant des perceuses à main.
|

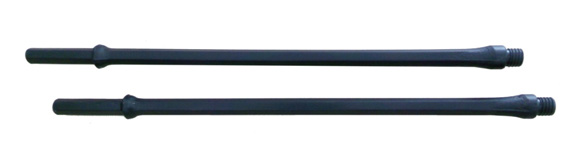

"H" Tige de forage filetée "H" |
Taille de tige: 7/8" x3 1/4” and 1"x 4 1/4" |
|
"H" Tige de forage filetée "H" |
Type: TC cross bit, TC button bit, All steel bit |
Tige de forage filetée "H"
|
Taille de tige |
Longueur |
Poids |
Numéro d'article |
|||
|
inch |
mm |
inch |
mm |
lbs |
kg |
|
|
7/8" x 3-1/4" |
Hex.22×82.5 |
12" |
304.8 |
3 |
1.36 |
10220812H |
|
18" |
457.2 |
4 |
1.81 |
10220818H |
||
|
24" |
609.6 |
5 |
2.27 |
10220824H |
||
|
30" |
762 |
6 |
2.72 |
10220830H |
||
|
36" |
914.4 |
7 |
3.18 |
10220836H |
||
|
48" |
1219.2 |
9 |
4.08 |
10220848H |
||
|
60" |
1524 |
11 |
4.99 |
10220860H |
||
|
72" |
1828.8 |
14 |
6.35 |
10220872H |
||
|
96" |
2438.4 |
18 |
8.16 |
10220896H |
||
|
120" |
3048 |
22 |
9.98 |
102208120H |
||
|
7/8" x 4-1/4" |
Hex.22×108 |
12" |
304.8 |
3.25 |
1.47 |
10221012H |
|
18" |
457.2 |
4.25 |
1.93 |
10221018H |
||
|
24" |
609.6 |
5.25 |
2.38 |
10221024H |
||
|
30" |
762 |
6.25 |
2.83 |
10221030H |
||
|
36" |
914.4 |
7.25 |
3.29 |
10221036H |
||
|
48" |
1219.2 |
9.25 |
4.20 |
10221048H |
||
|
60" |
1524 |
12 |
5.44 |
10221060H |
||
|
72" |
1828.8 |
13.25 |
6.01 |
10221072H |
||
|
1" x 4-1/4" |
Hex.25×108 |
12" |
304.8 |
4 |
1.81 |
10251012H |
|
18" |
457.2 |
5 |
2.27 |
10251018H |
||
|
24" |
609.6 |
7 |
3.18 |
10251024H |
||
|
30" |
762 |
9 |
4.08 |
10251030H |
||
|
36" |
914.4 |
10 |
4.54 |
10251036H |
||
|
48" |
1219.2 |
12 |
5.44 |
10251048H |
||
|
60" |
1524 |
15 |
6.80 |
10251060H |
||
|
72" |
1828.8 |
18 |
8.16 |
10251072H |
||
|
96" |
2438.4 |
23 |
10.43 |
10251096H |
||
|
120" |
3048 |
28 |
12.70 |
102510120H |
||
|
144" |
3657.6 |
33.5 |
15.20 |
102510144H |
||
Foret à filetage "H"
Bit de croix de TC |
Diamètre |
Poids |
Numéro d'article. |
||
|
inch |
mm |
lbs |
kg |
|
1-3/8" |
35 |
0.5 |
0.23 |
3135HC |
|
1-1/2" |
38 |
0.5 |
0.23 |
3138HC |
|
|
1-5/8" |
41 |
0.6 |
0.27 |
3141HC |
|
|
1-3/4" |
44 |
0.6 |
0.27 |
3144HC |
|
|
1-7/8" |
48 |
0.8 |
0.36 |
3148HC |
|
|
2" |
52 |
0.9 |
0.41 |
3152HC |
|
|
2-1/8" |
54 |
1.06 |
0.48 |
3154HC |
|
|
2-1/4" |
57 |
1.2 |
0.54 |
3157HC |
|
|
2-3/8" |
60 |
1.32 |
0.6 |
3160HC |
|
|
2-1/2" |
64 |
1.3 |
0.59 |
3164HC |
|
|
2-5/8" |
67 |
1.59 |
0.72 |
3167HC |
|
|
2-3/4" |
70 |
1.63 |
0.74 |
3170HC |
|
|
3" |
76 |
2.1 |
0.95 |
3176HC |
|
Remarque 31-Morceau de croix 30-Bit de bouton
|
Insert en carbure peu profond |
Diamètre |
Poids |
Numéro d'article. |
||
|
inch |
mm |
lbs |
kg |
||
|
|
1-3/8" | 35 | 0.44 | 0.2 | 3135HS |
| 1-1/2" | 38 | 0.49 | 0.22 | 3138HS | |
| 1-5/8" | 41 | 0.57 | 0.26 | 3141HS | |
| 1-3/4" | 44 | 0.79 | 0.36 | 3144HS | |
| 1-7/8" | 48 | 0.84 | 0.38 | 3148HS | |
| 2" | 52 | 0.88 | 0.4 | 3152HS | |
| 2-1/8" | 54 | 1.06 | 0.48 | 3154HS | |
| 2-1/4" | 57 | 1.1 | 0.5 | 3157HS | |
| 2-3/8" | 60 | 1.32 | 0.6 | 3160HS | |
| 2-1/2" | 64 | 1.46 | 0.66 | 3164HS | |
| 2-5/8" | 67 | 1.59 | 0.72 | 3167HS | |
| 2-3/4" | 70 | 1.63 | 0.74 | 3170HS | |
| 3" | 76 | 2.1 | 0.95 | 3176HS | |
Remarque 31-Morceau de croix 30-Bit de bouton
|
|
Diamètre |
Poids |
Numéro d'article |
||
|
inch |
mm |
lbs |
kg |
||
|
|
1-3/8" | 35 | 0.49 | 0.22 | 3035HB |
| 1-1/2" | 38 | 0.57 | 0.26 | 3038HB | |
| 1-5/8" | 41 | 0.66 | 0.3 | 3041HB | |
| 1-3/4" | 44 | 0.77 | 0.35 | 3044HB | |
| 1-7/8" | 48 | 0.88 | 0.4 | 3048HB | |
| 2" | 52 | 1.01 | 0.46 | 3052HB | |
| 2-1/8" | 54 | 1.06 | 0.48 | 3054HB | |
| 2-1/4" | 57 | 1.21 | 0.55 | 3057HB | |
| 2-3/8" | 60 | 1.43 | 0.65 | 3060HB | |
| 2-1/2" | 64 | 1.68 | 0.76 | 3064HB | |
| 2-5/8" | 67 | 1.77 | 0.8 | 3067HB | |
| 2-3/4" | 70 | 1.88 | 0.85 | 3070HB | |
| 3" | 76 | 2.1 | 0.95 | 3076HB | |
Remarque 31-Morceau de croix 30-Bit de bouton
|
Mors tout acier |
Diamètre |
Poids |
Numéro d'article |
||
|
inch |
mm |
lbs |
kg |
||
|
|
1-3/8" | 35 | 0.44 | 0.2 | 3135HA |
| 1-1/2" | 38 | 0.51 | 0.23 | 3138HA | |
| 1-5/8" | 41 | 0.6 | 0.27 | 3141HA | |
| 1-3/4" | 44 | 0.71 | 0.32 | 3144HA | |
| 1-7/8" | 48 | 0.77 | 0.35 | 3148HA | |
| 2" | 52 | 0.82 | 0.37 | 3152HA | |
| 2-1/8" | 54 | 0.93 | 0.42 | 3154HA | |
| 2-1/4" | 57 | 1.04 | 0.47 | 3157HA | |
| 2-3/8" | 60 | 1.15 | 0.52 | 3160HA | |
| 2-1/2" | 64 | 1.26 | 0.57 | 3164HA | |
| 2-5/8" | 67 | 1.37 | 0.62 | 3167HA | |
| 2-3/4" | 70 | 1.5 | 0.68 | 3170HA | |
| 3" | 76 | 1.68 | 0.76 | 3176HA | |
Remarque 31-Morceau de croix 30-Bit de bouton
