7° Tapred Drilling Tool

Button bit (7°)

Dimensions (D)

Flushing hole (mm)

Buttons (mm)

Angle

Part no.

mm

inch

Front
No size

Gauge
No size

Front
No size

Front
No size

H22

32
34
36
38
41

1 1/4”
1 11/32”
1 13/32”
1 1/2”
1 5/8”

1×4
1×4
1×4.5
1×4.5
1×5

2×4
2×4
2×4.5
2×5
2×5

5×7
5×7
5×8
5×8
5×9

2×7
2×7
2×7
2×7
2×7

40°
40°
40°
40°
40°

30322207-07
30342207-07
30362207-07
30382207-07
30412207-07

H22

34
36
38
41

1 11/32”
1 13/32”
1 1/2”
1 5/8”

1×4
1×4.5
1×4.5
1×5

2×4
2×4.5
2×5
2×5

6×7
6×7
6×8
6×8

2×7
2×7
2×8
2×8

35°
35°
35°
35°

30342208-07
30362208-07
30382208-07
30412208-07

H25

36
38
41
43

1 13/32”
1 1/2”
1 5/8”
1 11/16”

1×4.5
1×4.5
1×5
1×5

2×4.5
2×5
2×5
2×5

5×8
5×8
5×9
5×9

2×7
2×7
2×7
2×8

35°
35°
35°
35°

30362507-07
30382507-07
30412507-07
30432507-07

30
32
34
36
38
40

1 3/16”
1 1/4”
1 11/32”
1 27/64”
1 1/2”
1 37/64”

1×5
1×5
1×5
1×5
1×5.5
1×5.5

-
-
-
-
-
-

-
-
-
-
-
-

-
-
-
-
-
-

-
-
-
-
-
-

313022-07
313222-07
313422-07
313622-07
313822-07
314022-07

H25

36
38
41
43

1 13/32”
1 1/2”
1 5/8”
1 11/16”

1×5
1×5.5
1×5.5
1×5.5

-
-
-
-

-
-
-
-

-
-
-
-

-
-
-
-

313625-07
313825-07
314125-07
314325-07

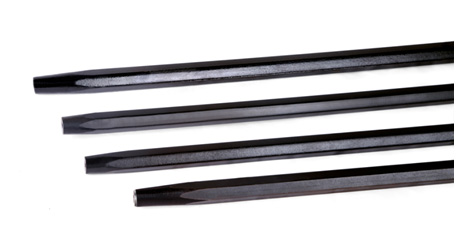

Tapered drill rod (7°)

Dimensions L

Dimensions D

Part no.

mm

ft

inch

mm

inch

Hex shank 22*108mm

600
800
1200
1600
2400
3200
4000

2
2
3
5
7
10
13

-
7
11
3
10
6
1

22
22
22
22
22
22
22

7/8
7/8
7/8
7/8
7/8
7/8
7/8

10220607
10220807
10221207
10221607
10222407
10223207
10224007

Hex shank 25*108mm

800
1600
2400
3200
4000

2
5
7
10
13

7
3
10
6
1

25
25
25
25
25

1
1
1
1
1

10251207
10251807
10252407
10253007
10254007
