6° Taperd Drilling Tool

Button bit (6°)

Dimensions
(D)

Flushing hole
(mm)

Buttons
(mm)

Angle

Part no.

mm

inch

Front
No size

Gauge
No size

Front
No size

Gauge
No size

32
34
36
38
41

1 1/4”
1 11/32”
1 27/64”
1 1/2”
1 5/8”

1×4
1×4
1×4.5
1×4.5
1×5

2×4
2×4
2×4.5
2×5
2×5

5×7
5×7
5×8
5×8
5×9

2×7
2×7
2×7
2×7
2×7

40°
40°
40°
40°
40°

30322207-06
30342207-06
30362207-06
30382207-06
30412207-06

34
36
38
40

1 11/32”
1 27/64”
1 1/2”
1 37/64”

1×4
1×4.5
1×4.5
1×5

2×4
2×4.5
2×5
2×5

6×7
6×7
6×8
6×8

2×7
2×7
2×7
2×8

35°
35°
35°
35°

30342208-06
30362208-06
30382208-06
30402208-06

36
38
41
43

1 27/64”
1 1/2
1 5/8
1 11/16

1×4.5
1×4.5
1×5
1×5

2×7
2×8
2×7
2×8

5×8
5×8
5×9
5×9

2×7
2×8
2×7
2×9

35°
35°
35°
35°

30362507-06
30382507-06
30412504-06
30432507-06

Chisel bit

Dimensions (D)

Flushing hole
(mm)

Buttons
(mm)

Angle

Part no.

mm

inch

Front
No size

Gauge
No size

Front
No size

Gauge
No size

30
32
34
36
38
40

1 3/16
1 1/4
1 11/32
1 27/64
1 1/2
1 37/64

2×5
2×5
2×5
2×5
2×5.5
2×5.5

-
-
-
-
-
-

-
-
-
-
-
-

-
-
-
-
-
-

-
-
-
-
-
-

313022-06
313222-06
313422-06
313622-06
313822-06
314022-06

30
32
34
36
38
40

1 3/16
1 1/4
1 11/32
1 27/64
1 1/2
1 37/64

2×5
2×5
2×5
2×5
2×5.5
2×5.5

-
-
-
-
-
-

-
-
-
-
-
-

-
-
-
-
-
-

-
-
-
-
-
-

313025-06
313225-06
313425-06
313625-06
313825-06
314025-06

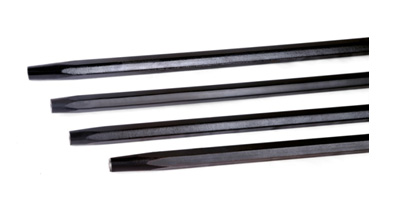

Tapered drill rod (6°)

Dimensions(L)

Dimensions(D)

Part no.

mm

ft

inch

mm

inch

Hex shank 22*108mm

600
800
1200
1600
2400
3200
4000

2
2
3
5
7
10
13

-
7
11
3
10
6
1

22
22
22
22
22
22
22

7/8
7/8
7/8
7/8
7/8
7/8
7/8

10220606
10220806
10221206
10221606
10222406
10223206
10224006

Hex shank 25*108mm

800
1600
2400
3200
4000

2
5
7
10
13

7
3
10
6
1

25
25
25
25
25

1
1
1
1
1

10251206
10251806
10252406
10253006
10254006
